Mega-Lite 1315

Overview

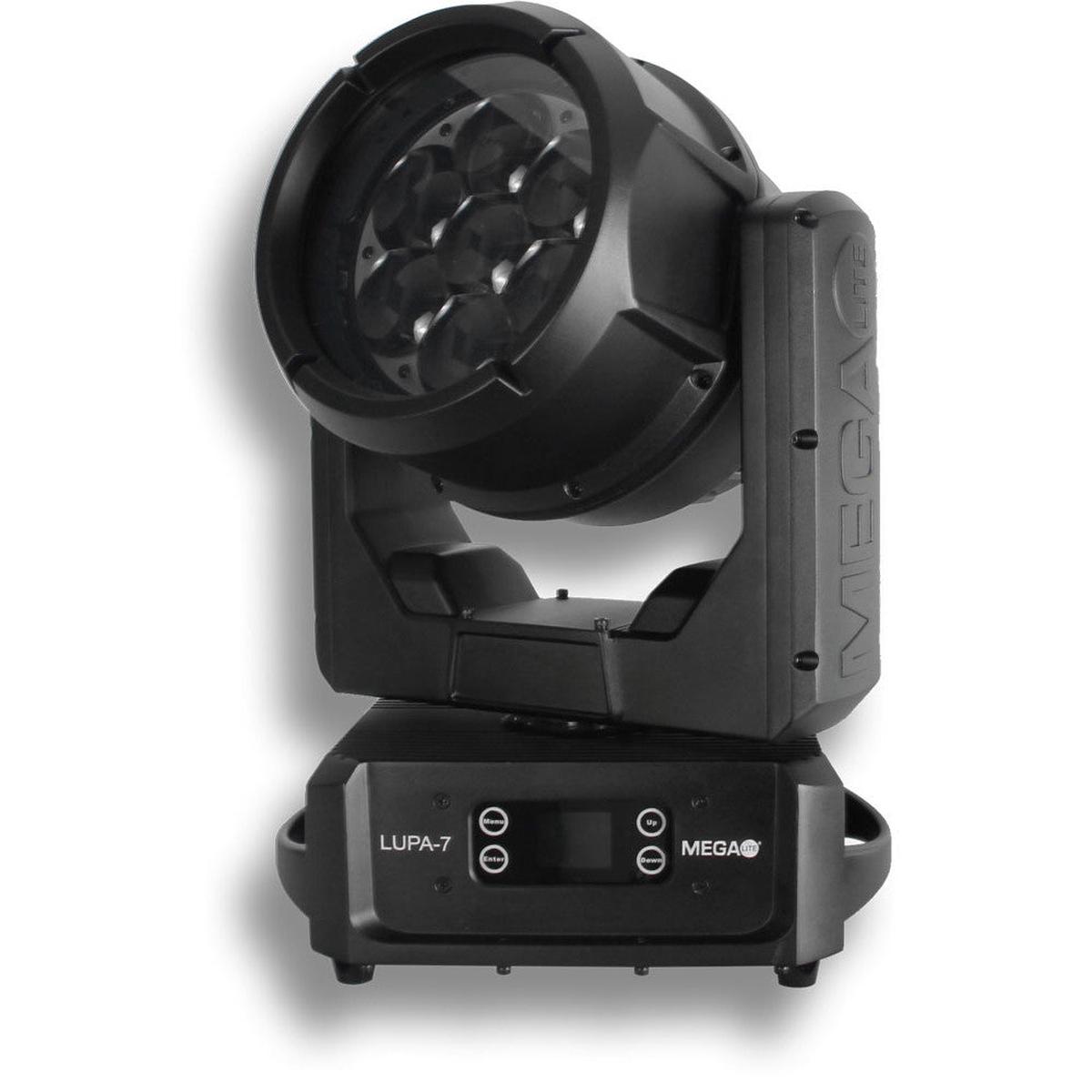

The Lupa-7 is equipped with 7 60W LEDs with individual beam effects allowing the user a wide range of potential looks. Including 28 X .5W pixel mappable LEDs that add ambiance to any lighting experience. With rotating lenses that expand the amazing possibilities for looks you can achieve this fixture is packed full of features.

7 60W LEDS

Equipped with seven 60W LEDs the lupa-7 floods your stage with vibrant colors, ensuring a visually captivating experience.

BEYOND MEDIA

With 28 X .5W Pixel mappable back LEDs that add depth and ambiance to your show with eye catching video playback and macros go beyond lights.

LENS ROTATION

Take control with dynamic lens rotation, directing beams of light to create sweeping effects tailored to your performance.

Specifications

• LIGHT SOURCE: 7 X 60W RGBW
• LIGHT SOURCE: 28 X .5W RGB
• DMX CONNECTORS: 5 PIN XLR IN AND OUT (IP RATED)
• POWER CONNECTION: SEETRONICS SAC3FPX INPUT & SAC3MPX OUTPUT (NEMA 5-15 TO
• SAC3FX-67 CABLE INCLUDED)
• FASTENING SYSTEM: 2 QUICK RELEASE CLAMP MOUNTS
• POWER SUPPLY: ELECTRONIC 100-240V AC 50/60
• POWER CONSUMPTION: 512 WATTS / 4.4 AMPS @ 110V
• DISPLAY: DIGITAL
• ZOOM ANGLE: 3 TO 32 ELECTRONIC ZOOM
• LENS: INFINITY LENS ROTATION
• HOUSING: DIE-CAST ALUMINUM
• COLOR TEMP WHITE: 9090K
• CRI (WARM WHITE): 75 @ full
• LUMEN OUTPUT: 3207Lm
• CONTROL PROTOCOLS: DMX 512, ARTNET, sACN, RDM
• RDM: YES
• CHANNEL MODES: 27 CHANNEL MODE, 139 CHANNEL MODE, 134 DUAL MODE DMX+ ARTNET
