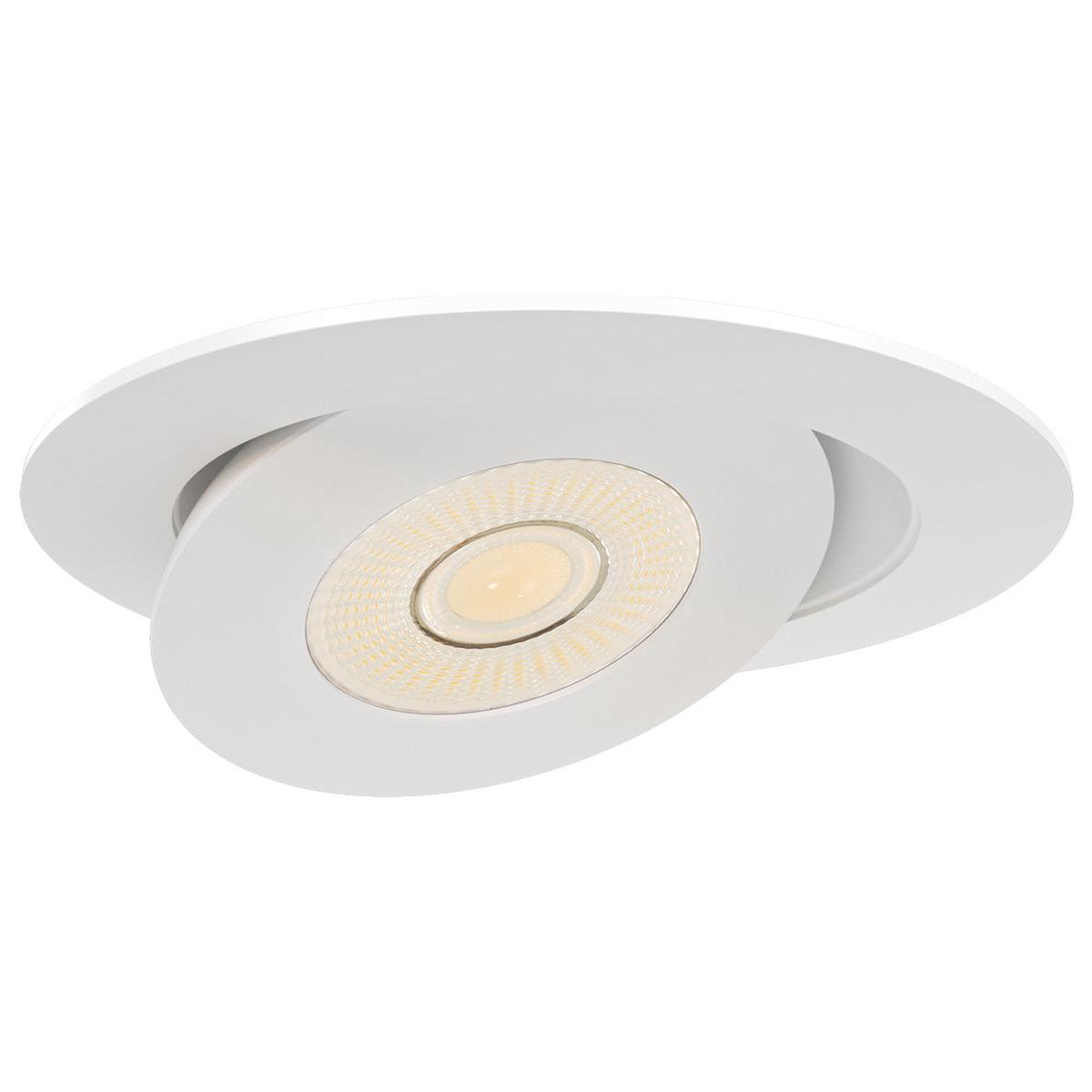

Liteline ORBIT 4″ Rotatable Gimbal, Round, White, SCP4-9W-CCT-WH*

Description

ORBIT is a 4″ adjustable downlight that allows for easy directionality to precisely aim light in almost any direction. With 80-degree tilting and 360-degree rotation this 9 watt fixture is perfect for creating a seamless look throughout your space. Perfect for sloped ceilings with a steep roof pitch, and this fixture can adjust to shine straight down.

Features

• Body
  Durable aluminum body with 360 rotation and 80 tilting.

• LED Characteristics
  This general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 750 lumens; with a typical CRI of 90. With a CCT range of 2700 K – 5000 K color temperature.

• Dimming
  100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visitwww.liteline.com/Orbit.

• Beam Spread
  The fixture lens provides 36 beam spread.

• Mounting
  Includes two spring loaded clips to attach to any ceiling material.

• LED Driver
  Extruded aluminum hardwire box with 210mA dimmable class II electronic LED driver with 100-135V, 60Hz AC input. Includes an 15″ FT6 rated cable with 3-pin DC connector between driver and fixture approved for use in plenums and suspended ceilings. Includes 5 position CCT switch.

• Quick Connect Push-in Terminals
  Three “Quick connect” push-in terminals for fast and easy wiring.

• Operating Temperature
  -40C~40C (-40F~104F)

• Environment
  Suitable for wet locations.
  Approved for direct contact with insulation.
  Airtight
  Indoor / Outdoor rated.

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 36
CCT: 2700 K / 3000 K / 3500 K/ 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Color: White
CRI: 90+
Dimming: Yes
Dimming Tech: TRIAC/ELV
Energy Star: Yes
Hole Cut : 4 ” (108mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: Up to 875
Lumens per Watt: Up to 100
Power Factor: 0.95
Projected Life: 70% @ 50,000 hrs
Title 24: Yes
Warranty: Lifetime
Wattage: 9W

• CCT Lumens:
  • 2700 K – 785 Lumens
  • 3000 K – 815 Lumens
  • 3500 K – 860 Lumens
  • 4000 K – 875 Lumens
  • 5000 K – 815 Lumens
