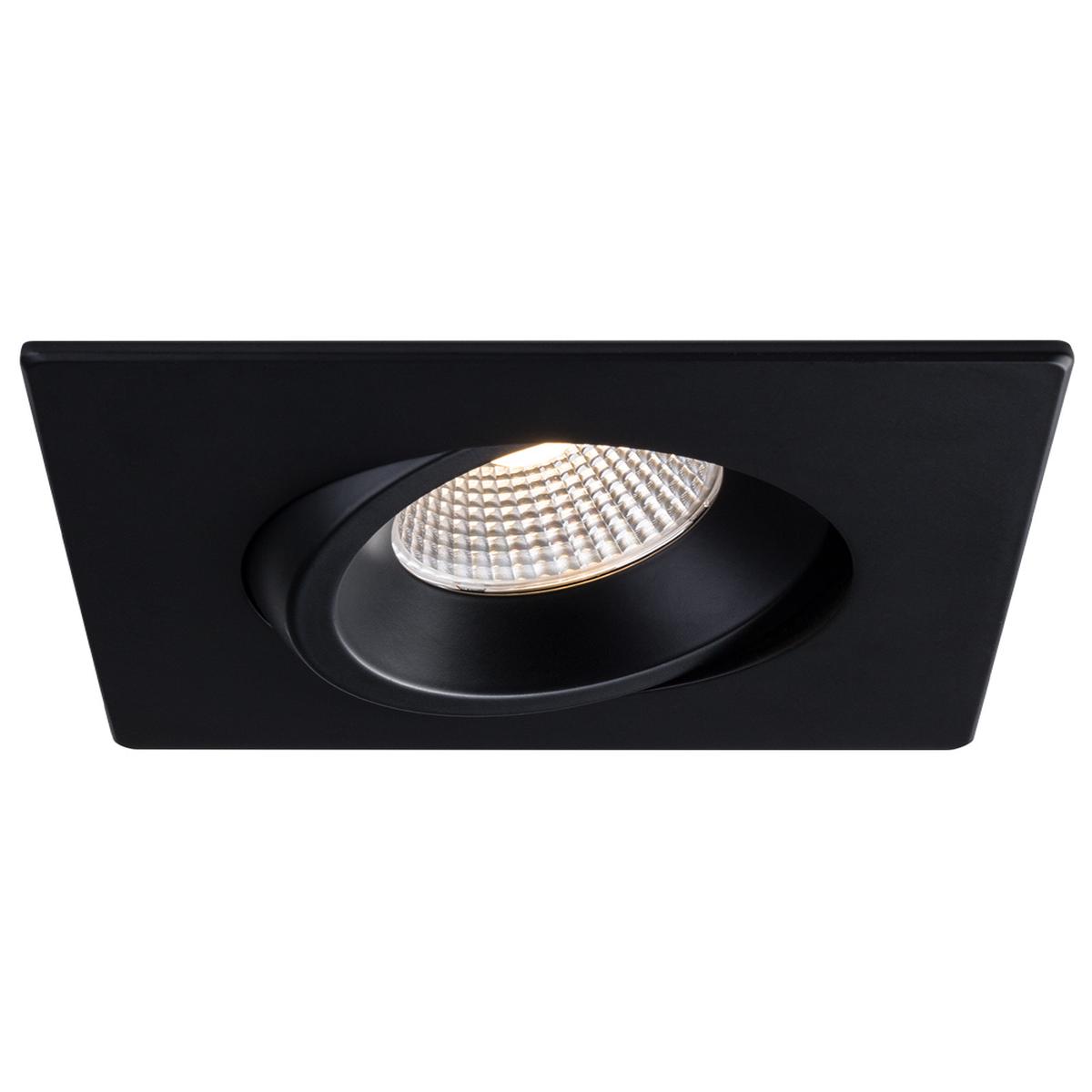

Liteline 4″ Luna LED Black Square Regressed Gimbal Recessed Fixture, Dim to Warm, Model RA4S-12RG-DTW90BK*

Description

The RA4S-12RG-90 is a 12 watt 4″ square regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.

Features

• Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.

• This general application light fixture features an LED module that maintains uniform intensity producing up to 850 lumens; with a typical CRI of 90. Dim-to-Warm fixtures available in 3000 K color temperature.

• 100%-10% dimming capability. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers (contact factory for list of compatible dimmers).

• The fixture lens provides 38 beam spread.

• Includes two spring loaded clips to attached to any ceiling material.

• Extruded aluminum hardwire box with 12 watt (300mA) or 9 watt (210mA) dimmable class II electronic LED driver with 100-135V AC input. Includes an 18 FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.

• Three Quick connect push-in terminals for fast and easy wiring.

• Operating Temperature -20C~40C (-4F~104F)

• Suitable for wet locations.

• Approved for direct contact with insulation.

• Airtight

• Durable airtight aluminum body with adjustable regressed gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38
CCT: 3000 K~2000 K
Certification: cETLus
Class II: Yes
Color: Black
CRI: 90
Dimming: Yes
Dimming Tech: Forward/reverse-phaseTRIAC/ELV
Hole Cut : 4 ” (108mm)
Input: 100-135V AC, 50 / 60Hz
Lumens: Up to 700
Lumens per Watt: Up to 59
Power Factor: 0.9
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 12W
