Name: Ifm O2D945 External Illumination
SKU: VQL79947320462
Availability: InStock

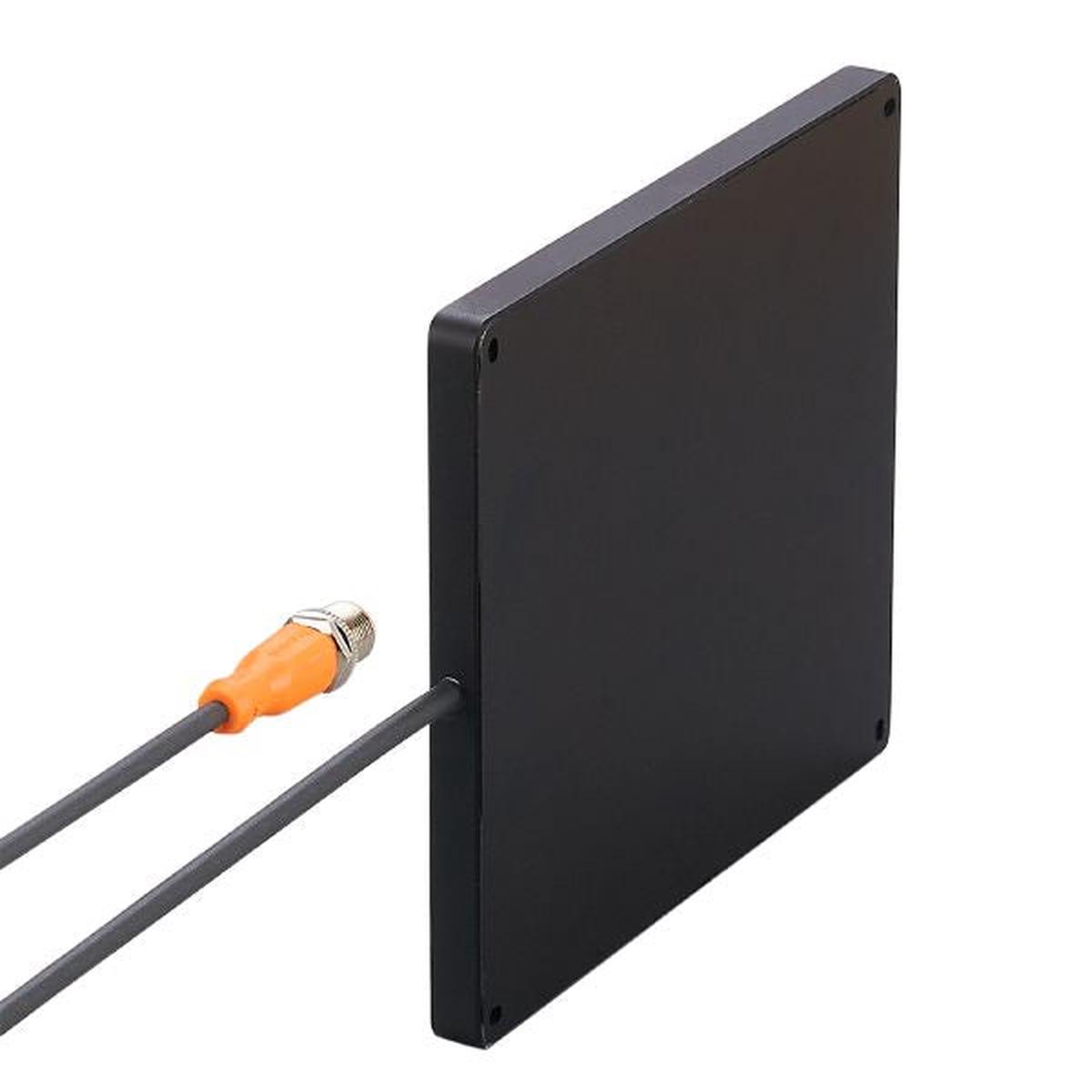

Ifm O2D945 External Illumination

Product characteristics Type of light Infrared light Application System gold-plated contacts Illuminated field [mm] 100 x 100 Design backlight Type of operation Permanent light or...

Categories: Lighting

Secure Payment Processing
Fast & Reliable Delivery
Easy Returns & Exchange

Description
Reviews (0)

Product characteristics

Type of light	Infrared light

Application

System	gold-plated contacts
Illuminated field [mm]	100 x 100
Design	backlight
Type of operation	Permanent light or pulse operation

Electrical data

Operating voltage tolerance [%]	-10…10
Operating voltage [V]	24 DC
Current consumption [mA]	< 620
Protection class	III
Reverse polarity protection	yes
Type of light	Infrared light
Wave length [nm]	875

Inputs

Trigger	5…24 V

Outputs

Overload protection	yes

Operating conditions

Ambient temperature [C]	-10…50
Protection	IP 54
Overheat protection	yes; (> 50 C)

Tests / approvals

Photobiological safety	exempt group; (EN 62471)
MTTF [years]	293

Mechanical data

Weight [g]

448.4

Dimensions [mm]

155 x 133 x 9.8

Material

aluminum

Lens material

glass

Displays / operating elements

Display

Illumination status	1 x LED, yellow
Power	1 x LED, green
Excess temperature / overload	1 x LED, red

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
