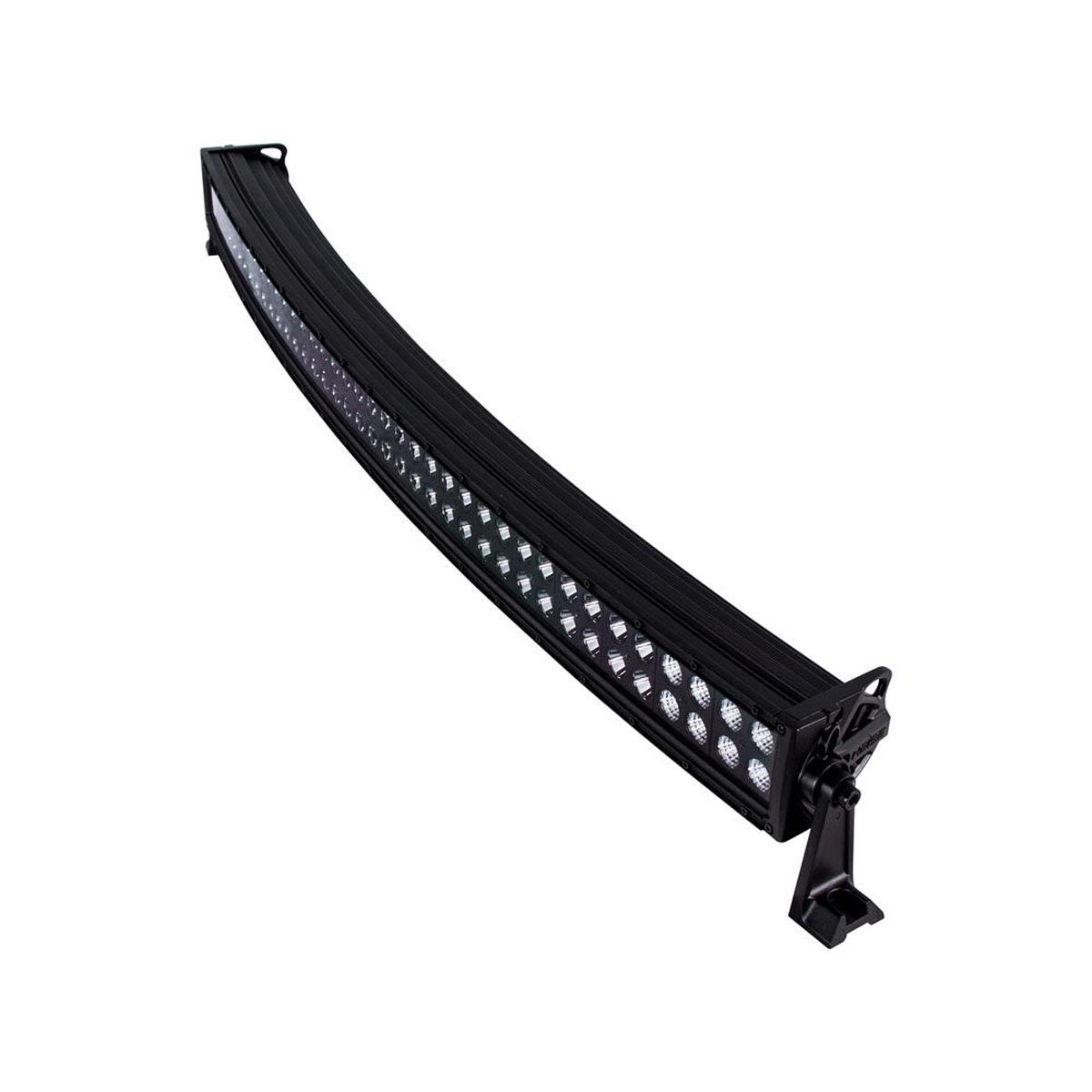

HEISE Dual Row Curved Blackout LED Light Bar – 42″

Dual Row Curved Blackout LED Light Bar – 42″

SPECS

• Input Voltage: 1030V DC
• Wattage: 240W (803W CREE LEDs)
• Raw Lumens: 19200
• LUX @ 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Diecast Aluminum Housing
• Housing Color: Black
• Membrane: Gore
• Lens Material: PC
• Mounting Bracket: Diecast Aluminum
• Hole Dimensions:

• Brackets turned inward 41″
• Brackets turned outward 43.50″
• Mounting Bolt Drill .25″

• Height of Light Bar Itself: 3″
• Depth of Light Bar Itself: 3.50″
• Electronics: IntegratedEpoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: 40C to +60C
• Current Consumption: 12 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 42″
• Housing: Black
• Voltage – Input Range (Volts): 10-30v
• Box Dimensions: 5″H x 8″W x 44″L WT: 13.4 lbs
• UPC: 086429312801
