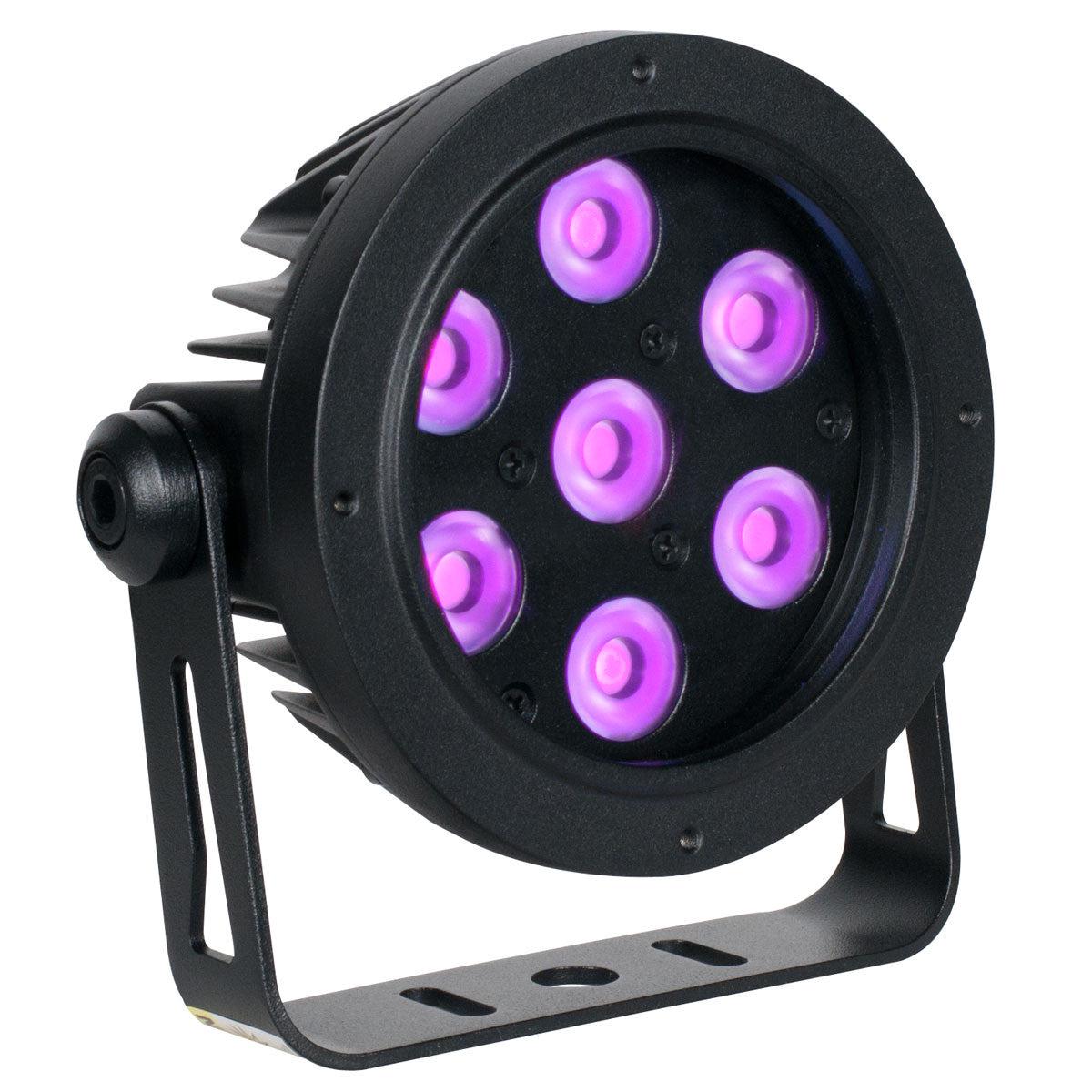

Elation Prisma Mini Par 20

Overview

PRISMA MINI PAR 20 is an IP65-rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20-degree beam angle.

Powered by the PRISMA DRIVER 8 or PRISMA DRIVER 8IP, ‘Not Included’

Features

IP65 Rated Exterior High-Power UV Wash Par Luminaire
20 Degree Narrow Beam Angle7x 2 Watt LEDS365nm True UV Peak Wavelength9′ 22 Gauge 2 Conductor wire with Phoenix connectorZero Visible Light Output19 Watt Max Power Consumption

Specifications

SOURCE

7x 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA20 Degree Narrow Beam Angle365nm True UV Peak Wavelength
EFFECTSHigh Speed Electronic StrobeVariable Dimming Curve Modes
CONSTRUCTIONRugged IP65 Rated Aluminum HousingAdjustable Mounting Yoke
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)Multiple DMX Channel ModesDMX-512 and RDM Protocol Support
CONNECTIONS9′ 22 AWG 2 Conductor wire with Phoenix connectorMinimum Cable Requirement: 22 AWGMaximum Distance From Driver to Fixture: 40′
SIZE / WEIGHTLength: 5.66 in. (144mm)Width: 2.86 in. (72.8mm)Vertical Height: 5.64 in. (143.3mm)Weight: 1.98 lbs. (0.9kg)
ELECTRICALDC 25V (Via Pixel Driver 8)19W Max Power Consumption

THERMAL14F to 113F (-10C to 45C)Air Cooled
APPROVALS / RATINGSCE | cETLus | IP65

Specifications and documentation subject to change without notice.
