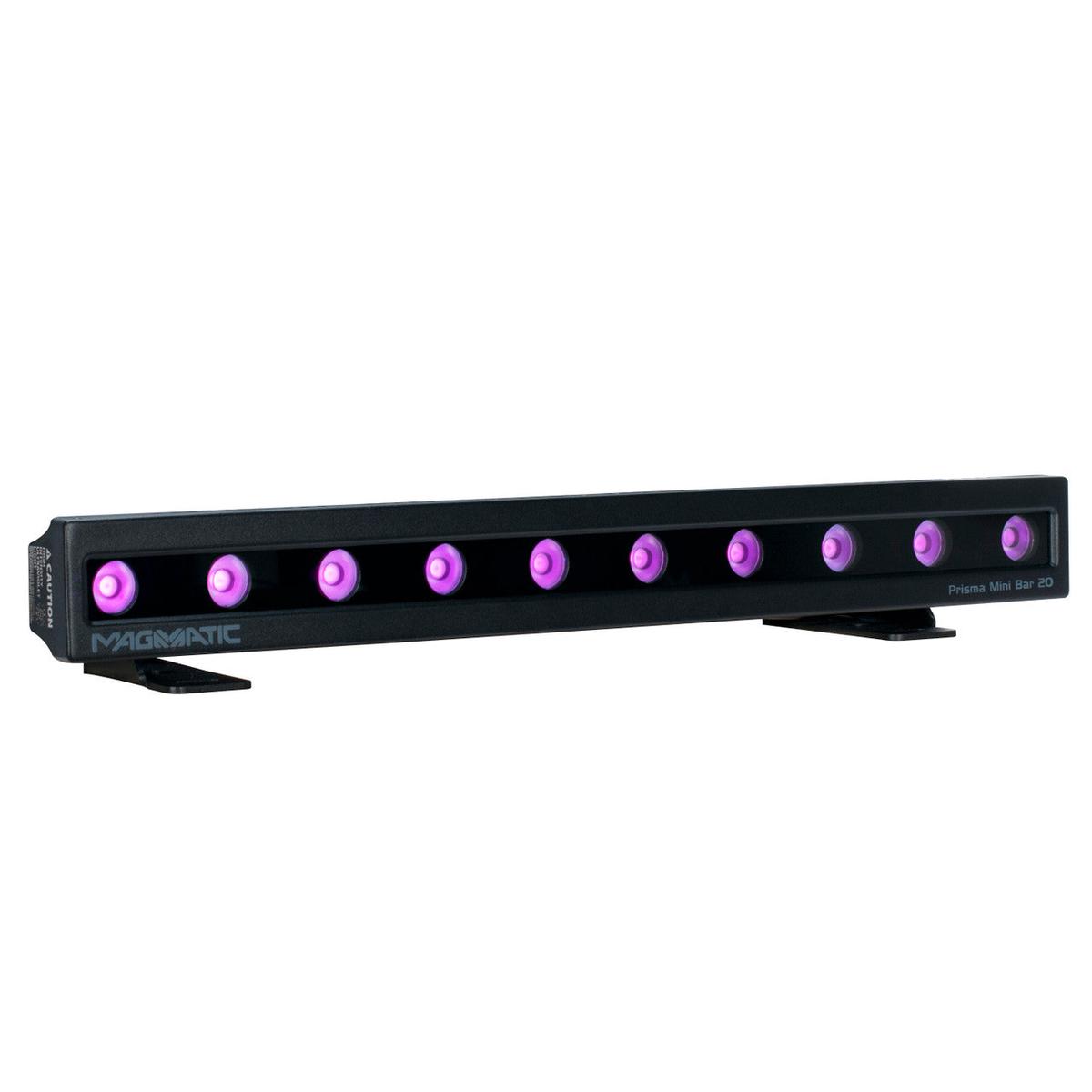

Elation Prisma Mini Bar 20

Overview

PRISMA MINI BAR 20 is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Powered by the PRISMA DRIVER 8 or PRISMA DRIVER 8IP‘Not Included’

Features

IP65 Rated Exterior High-Power UV Wash Bar Luminaire10x 2 Watt LEDS36.7 Volts24.3W Max Power Consumption20 Degree Narrow Beam Angle19′ 22 Gauge 2 Conductor wire with Phoenix connectorZero Visible Light Output

Specifications

SOURCE(10) 2W High Power UV Diode LEDs20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA20 Degree Narrow Beam Angle365nm True UV Peak Wavelength
EFFECTSHigh Speed Electronic StrobeVariable Dimming Curve Modes
CONSTRUCTIONRugged IP65 Rated Aluminum HousingAdjustable Mounting Brackets (x2)
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)Multiple DMX Channel ModesDMX-512 and RDM Protocol Support
CONNECTIONS19′ 22 AWG 2 Conductor wire with Phoenix connectorMinimum Cable Requirement: 22 AWGMaximum Distance From Driver to Fixture: 40′
SIZE / WEIGHTLength: 3.97 in. (100mm)Width: 18.9 in. (480mm)Vertical Height: 4.19 in. (106.5mm)Weight: 4.2 lbs. (1.90kg)
ELECTRICALDC 36.7V (Via Pixel Driver 8)24.3W Max Power Consumption
THERMAL14F to 113F (-10C to 45C)Air Cooled
APPROVALS / RATINGSCE | cETLus | IP65
Specifications and documentation subject to change without notice.
