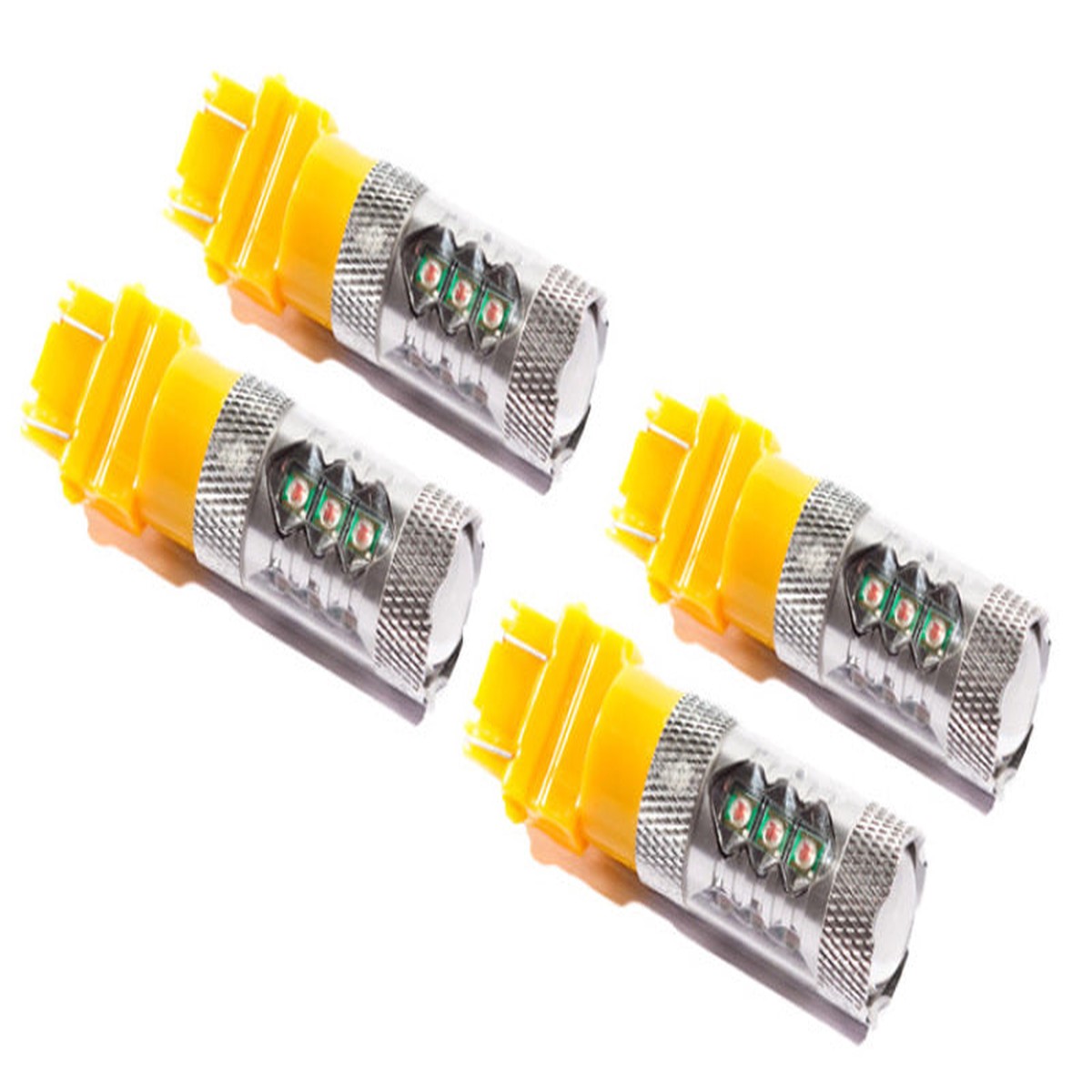

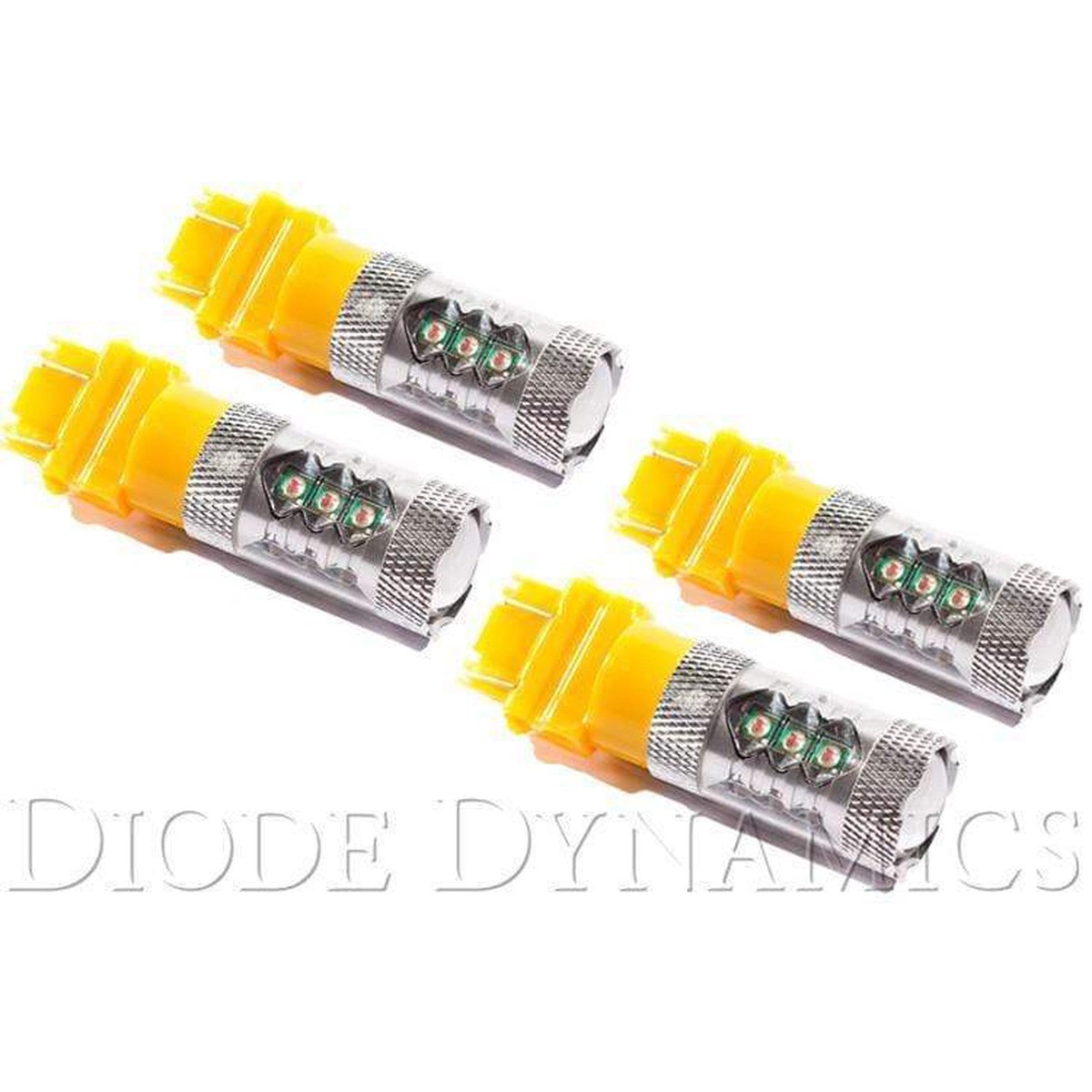

Diode Dynamics 3157 LED Bulb XP80 LED Amber Set of 4

Part #: DD0058Q

LED Indicators. The factory incandescent turn signals on the Ford Flex illuminate in a slow glow, taking a moment to turn off and on. With replacement LED bulbs, you can immediately update your vehicle with the instant on-off blinking of modern LEDs. This instant activation adds a modern and distinct look to the Flex.

Dual Brightness. The Flex uses a 3157 dual-filament bulb. They light up with low power as parking lights, then they get brighter when the turn signal or hazards are activated. The brightness ratio of your factory bulbs is traditionally 15:100, or 15 percent lumen output for the dim function. Diode Dynamics bulbs are designed to match this, so there is enough distinction between low and high brightness levels. As with all Diode Dynamics LED bulbs, these turn signal bulbs are rated with accurate, measured lumen figures, not calculations or guesses.

Switchback. The dual-filament function of your factory turn signal bulbs gives you the ability to choose a unique LED bulb model: switchback! These bulbs illuminate in a bright white for the low power setting for your running/parking light, then switch to intense amber when the turn signals are activated. When the turn signal is switched off, they return to the original white output. The result is a modern dual-color effect, as seen on many high-end vehicles on the road. Please note: in order to properly see the white, you must have clear reflectors/lenses over the turn signal bulb. If your Flex has amber reflectors, you might be able to find clear aftermarket ones to complete this upgrade!

Reduced Load. When it comes to LED upgrades, you’d think the lower power draw would be a great feature! However, the Flex looks for a specific power draw from the turn signals. LEDs will make the vehicle think a bulb has gone out, due to lower power draw. This causes a hyperblink, or fast-blinking turn signal, which can be corrected with LED Resistors or an LED Flasher.

The most basic, tried-and-true method to correct hyperblinking is to add resistors. These can be used on any vehicle, because a 6-ohm resistor uses about the same power as a standard turn signal bulb. One resistor is needed to replace each turn signal bulb.

You may have also heard of flasher relays, which is the actual module that determines flash speed. On some vehicles, it can be replaced with one that is designed for LED power levels. However, on many newer vehicles these modules cannot be replaced. If it’s possible to replace the flasher on the Flex, you’ll see one listed above. Only one flasher is needed per vehicle, for both front and rear LED turn signal conversions.

Reliability. Diode Dynamics LEDs are built with constant-current inductive circuitry, along with transient suppression. They are tested by our engineering team with a device that replicates years of voltage spikes, like the ones generated each time the alternator starts and stops on your Flex. This is what kills most LED bulbs over time, but just like factory components, Diode Dynamics LEDs are designed with built-in circuit protection. While more expensive than simple bulbs, this allows Diode Dynamics LEDs to last for years, with no flickering or failure.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it’s a Ford or anything else, we pride ourselves in offering only the best possible LED solutions.
Features

• 3157 LED Bulb XP80 LED Amber Set of 4
• Modern LED appearance with instant on and off
• Direct replacement for Ford Flex front turn bulbs
• Plug and play, no modification with factory 3157 bulb size
• Multiple brightness levels available

What’s Included

• Quantity: Four (4)
• Warranty: 3 year warranty
• Return Policy: 30-day Return with no restocking fee
• 100 percent Satisfaction Guarantee

Fitment

• Bulb Size: 3157
• Application: Front Turn Signal
• Make: Ford
• Model: Flex
• Years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Flasher
• Setup: BCM Controlled (resistor only)

Specifications

• Operating Voltage: 9-16V
• Operating Temperature: No
• Connector(s): OEM-Size Plug and Play

Features Direct replacement for factory incandescent 3156/3157-size turn signal bulb. Sixteen high-power 5W LEDs arranged in all directions. Metal heatsink to maintain high output. Inductive constant-current drive circuit. Increased output with LED appearance. Plug and play simple installation. 510 lumens per bulb. Overview Upgrade. Add more light output and a modern appearance to your vehicle with the 3156/3157 XP80 turn signal bulb. Populated with twelve side-firing 5W-rated LED chips and four forward-facing 5W-rated LED chips this is the brightest self-contained automotive LED bulb on the market. Housed in an aluminum casing with a textured finish for maximum heatsinking properties the XP80 will last for years to come. Best of all installation only takes minutes – simply take out your factory bulb and the XP80 will fit snugly in the socket. Brightness. At 510 lumens the XP80 will provide about double the total light output compared to your factory bulb. All Diode Dynamics LED lighting is rated with accurate measured lumen figures not calculations or guesses. We test the true output in-house and provide you the real numbers to compare. Reliability. Unlike other bulbs on the market this bulb is built with constant-current circuitry along with transient suppression. That means this bulb will last for years not months with no flickering or failure. And like every Diode Dynamics product it’s backed by an industry-leading three-year replacement warranty.

• Molded construction with sturdy double terminals
• Direct replacement for your factory bulb
• Increased output with LED Appearance
• Plug and play simple installation
