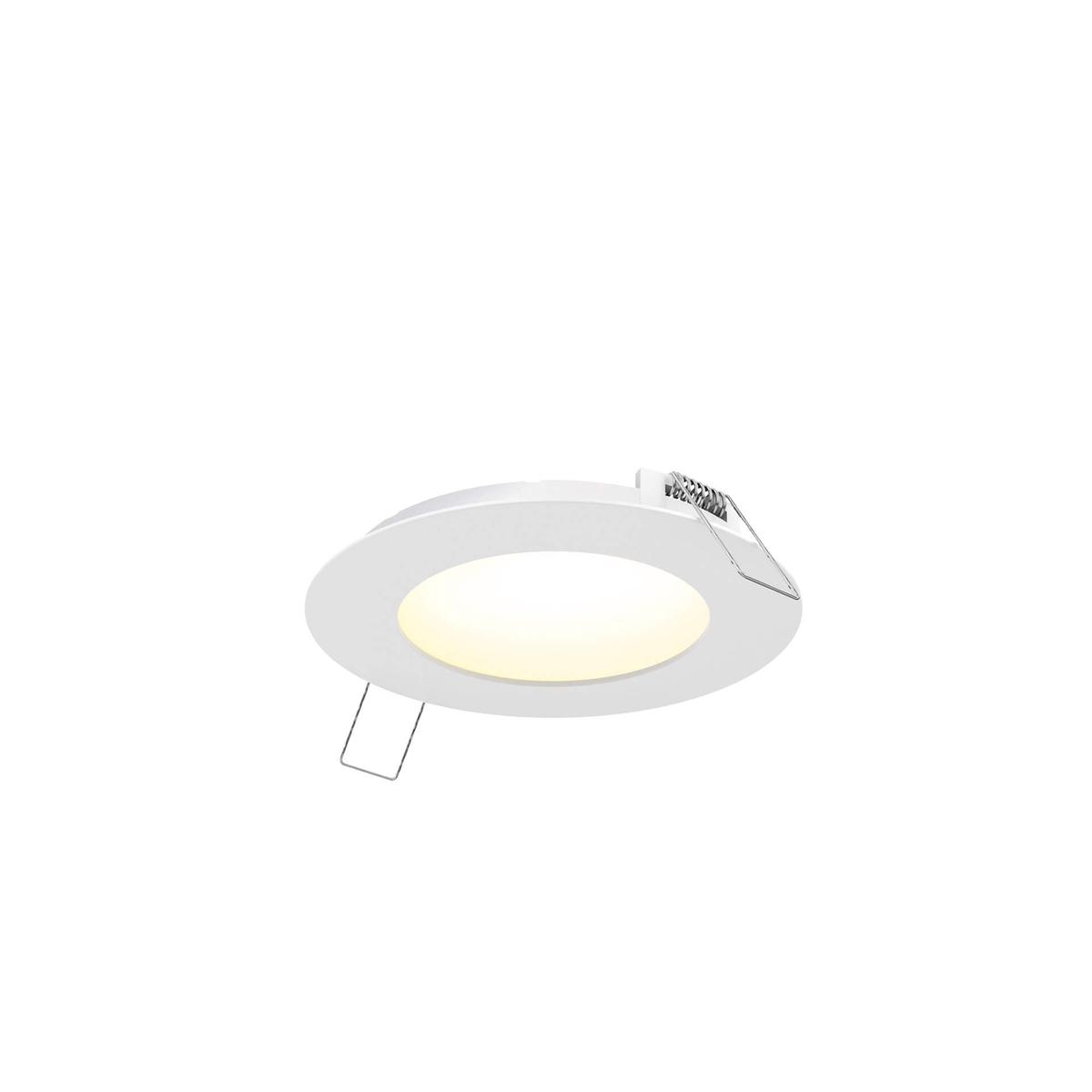

DALS Lighting White 4 Inch Round CCT LED Recessed Panel Light, Model 5004-CC-WH*

Description

Dals’new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Features

• Every fixture includes a junction box with an integrated driver
• Over 35,000 hours of service life
• Can be daisy chained
• Superior LED performance and lifespan
• Smooth 360 wide spread
• Minimal heat emission
• Frosted lens
• Edge lit technology
• Aluminum construction
• Switch-selectable CCT: 2700K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
• Very low profile
• IC certification (suitable for directcontact with insulation)
• Air-tight certified as per ASTM E283-04
• Suitable for wet locations
• Ideal operating temperature: -20 to 40 C
• FT4rated cable
• 5-year warranty

Technical Information

Finish: White
Smart: No
Beam Angle: 110
Recommended Dimmers:See spec sheet inDocumentstab for recommended dimmers
Watts:11W
Delivered Lumen:770lm
LED Lumens:880lm
Dimming:TRIAC
CRI:80+
Color Temperature:2700K, 3000K, 3500K, 4000K, 5000K
Rating: Wet
Location: Indoor/Outdoor
Voltage:120V
Cutout size:4-14″
Dimensions:4-3/4″ x 0.5″
Lifetime:35000H
Warranty: 5 Year Limited
