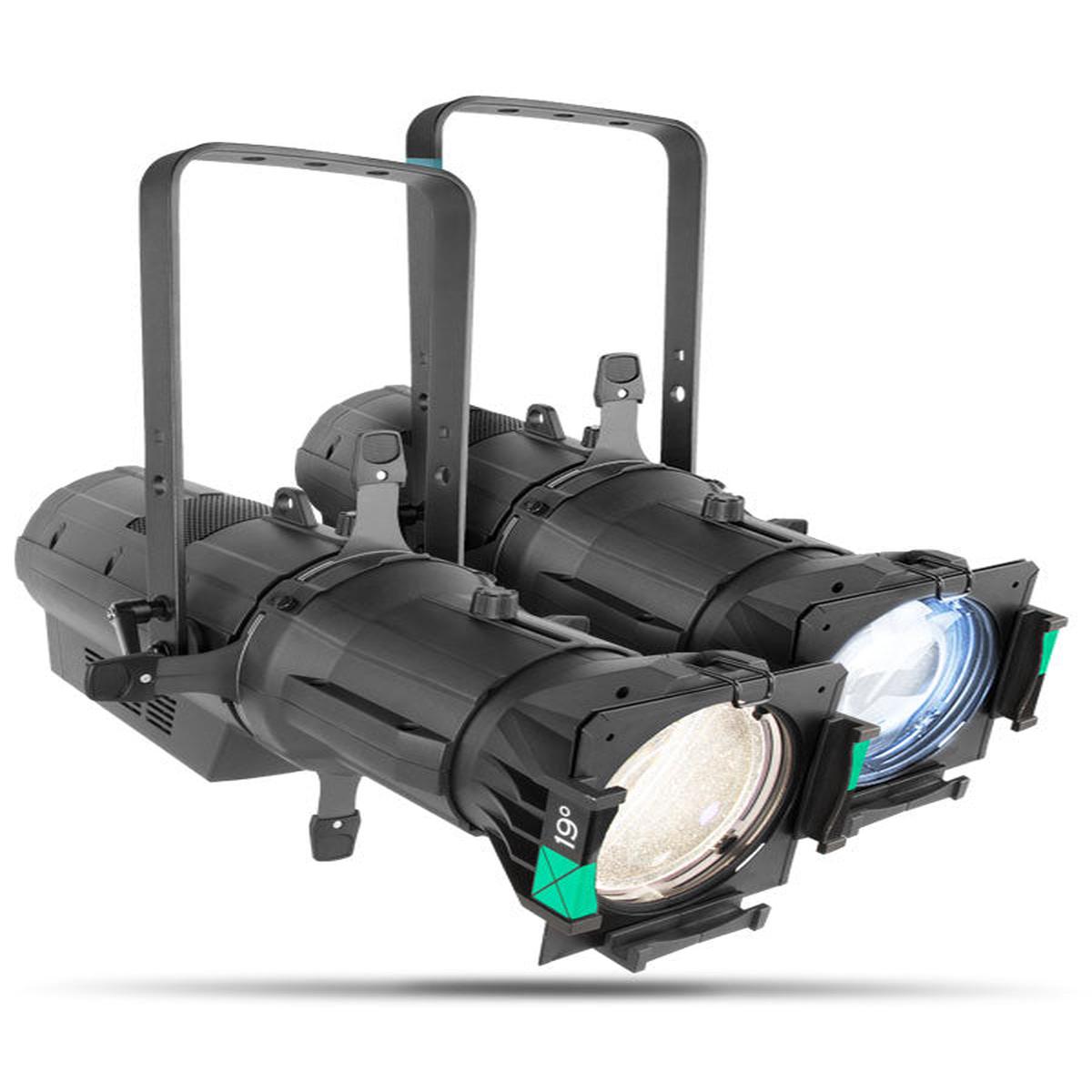

CHAUVET PROOVATION-E260CW-2 – boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection.

Ovation E-260CWis powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

Features

• Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Specifications

• OPTICAL
  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 230 W, (3.5 A), 5452 K, 50,000 hours life expectancy
  • Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
  • CRI: (WW) 96; (CW) 96
  • Beam Angle (w/5 lens): 6
  • Beam Angle (w/10 lens): 8
  • Beam Angle (w/14 lens): 11
  • Beam Angle (w/19 lens): 13
  • Beam Angle (w/26 lens): 16
  • Beam Angle (w/36 lens): 20
  • Beam Angle (w/50 lens): 28
  • Beam Angle (w/1530 lens)(Narrow): 12
  • Beam Angle (w/1530 lens)(Wide): 14
  • Beam Angle (w/2550 lens)(Narrow): 21
  • Beam Angle (w/2550 lens)(Wide): 22
  • Field Angle (w/5 lens): 7
  • Field Angle (w/10 lens): 10
  • Field Angle (w/14 lens): 14
  • Field Angle (w/19 lens): 18
  • Field Angle (w/26 lens): 25
  • Field Angle (w/36 lens): 34
  • Field Angle (w/50 lens): 50
  • Field Angle (w/1530 lens)(Narrow): 15
  • Field Angle (w/1530 lens)(Wide): 29
  • Field Angle (w/2550 lens)(Narrow): 26
  • Field Angle (w/2550 lens)(Wide): 46
  • Dimming Modes: 4
  • Lumens (w/19 lens): (WW) 7,587; (CW) 9,530
  • Lumens (w/26 lens): (WW) 10,284; (CW) 13,368
  • Lumens (w/36 lens): (WW) 10,121; (CW) 13,184
  • Lumens (w/50 lens): (WW) 9,655; (CW) 12,672
  • Illuminance (w/5 lens): (WW) 41,400 lux @ 5 m; (CW) 49,200 lux @ 5 m
  • Illuminance (w/10 lens): (WW) 23,300 lux @ 5 m; (CW) 26,600 lux @ 5 m
  • Illuminance (w/14 lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m
  • Illuminance (w/19 lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m
  • Illuminance (w/26 lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
  • Illuminance (w/36 lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
  • Illuminance (w/50 lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
  • Illuminance (w/1530 lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m
  • Illuminance (w/1530 lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m
  • Illuminance (w/2550 lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m
  • Illuminance (w/2550 lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• DYNAMIC EFFECTS
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Color Temperature Presets: (CW) No
• CONSTRUCTION / PHYSICAL
  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/5 lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
  • Dimensions (w/10 lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
  • Dimensions (w/14 lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26 lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/1530 lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/2550 lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7 kg)
  • Weight (w/5 lens): 21.2 lb (9.7 kg)
  • Weight (w/10 lens): 19.2 lb (8.8 kg)
  • Weight (w/14 lens): 20.8 lb (9.43 kg)
  • Weight (w/26 lens): 19.4 lb (8.80 kg)
  • Weight (w/1530 lens): 29.4 lb (13.34 kg)
  • Weight (w/2550 lens): 27 lb (12.25 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): A: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): B: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5 lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10 lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14 lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19, 26, 36, and 50 lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (1530 lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (2550 lens): 7.5 in (191 mm)
• CONNECTIONS
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: (WW) DMX RDM; (CW) DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: (WW) 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: (WW) 236 W, 1.944 A @ 120 V, 60 Hz; (CW) 225 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: (WW) 244 W, 1.167 A @ 208 V, 60 Hz; (CW) 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: (WW) 243 W, 1.053 A @ 230 V, 50 Hz; (CW) 231 W, 1.0 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC
  • IP Rating: IP20, dry location
• REQUIRED ACCESSORIES
  • Lens Tube: 14 (CW), 19, 26, 36, 50

WHAT’S INCLUDED

• Ovation E-260CW
• Neutrik powerCON power cord

LED Ellipsoidal LED Source: 1 x 202W CW LED, (3.6 A) Illuminance (w/19 lens): 9,256 lux @ 5 m Illuminance (w/26 lens): 6,910 lux @ 5 m Illuminance (w/36 lens): 4,053 lux @ 5 m Illuminance (w/50 lens): 1,703 lux @ 5 m Illuminance (w/1530 lens): 12,430 lux @5m Illuminance (w/1530 lens): 5,339 lux @5m Illuminance (w/2550 lens): 4,997 lux @5m Illuminance (w/2550 lens): 3,295 lux @ 5 m 16 bit dimming Dimming Modes: 4 Adjustable PWM frequency to avoid flickering on camera RDM for added programming flexibility Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) DMX Channels: 1, 2,3 or 6 Data Connections: 3 or 5-pin DMX Cables
