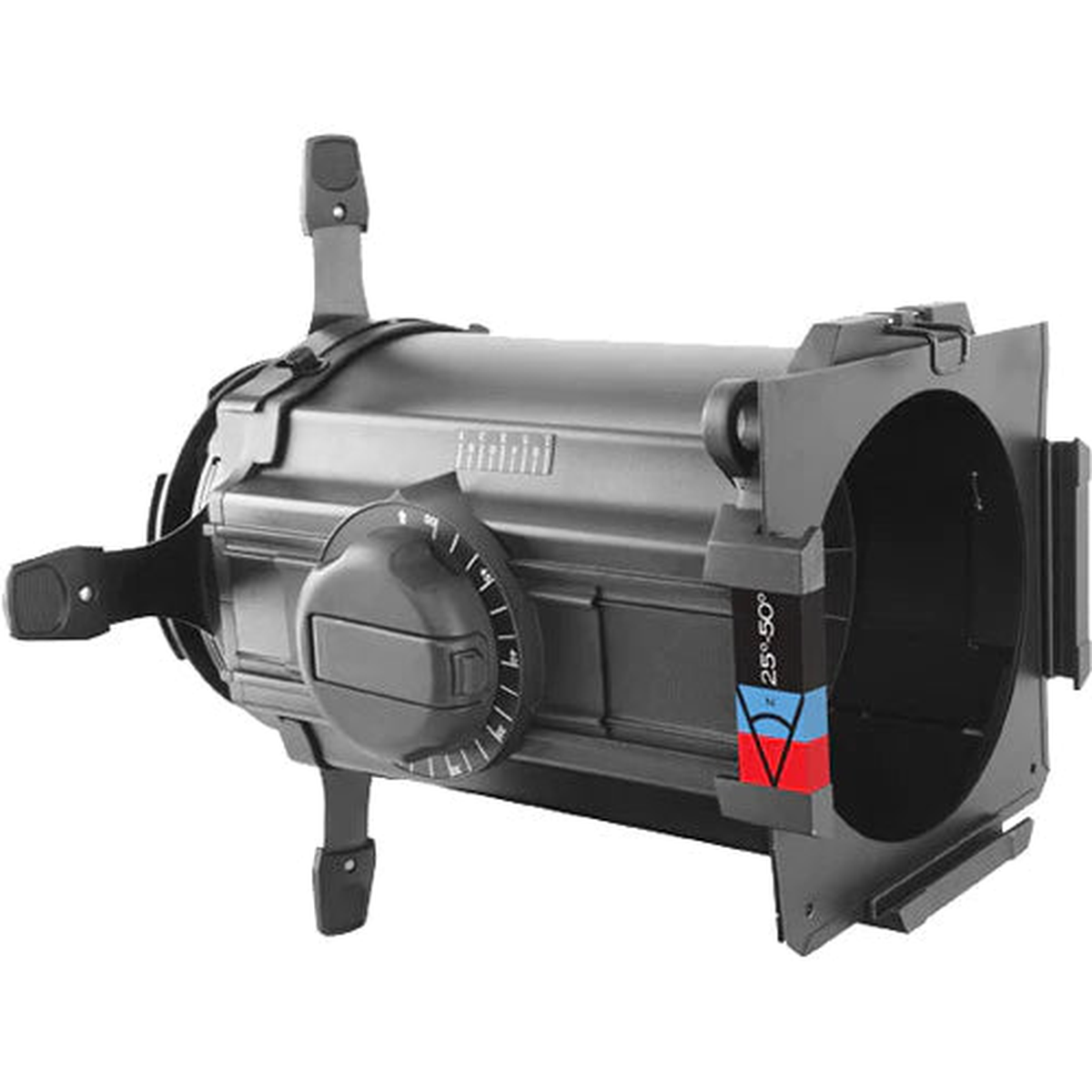

CHAUVET PROOHDZOOM2550-2- Chauvet Professional OHDZOOM2550-2 – Ovation Ellipsoidal HD Zoom Lens Tube – 25-50 Degree

25-50 degree HD zoom barrel for E-Series 14-degree HD barrel for Ovation E-Series.

Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.

AT A GLANCE

• Variable focal length lens tube for the Ovation E-Series fixtures
• Independent adjustment for beam angle and focal point
• Dual aspheric lenses provide precise focus for crisp gobo projection
• Integrated gel frame holder and gel frame included
• Includes replacement fixture yoke for better balance and more positioning support

SPECIFICATIONS

OPTICAL

• Installed Optics: 2550

CONSTRUCTION / PHYSICAL

• Dimensions (2550): 8.5 x 9.4 x 18.9 in (215 x 239 x 378 mm)
• Weight (2550): 11.6 lb (5.26 kg)
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CERTIFICATIONS / QUALIFICATIONS

• IP Rating: IP20, dry location

WHAT’S INCLUDED

• OEZOOM2550
