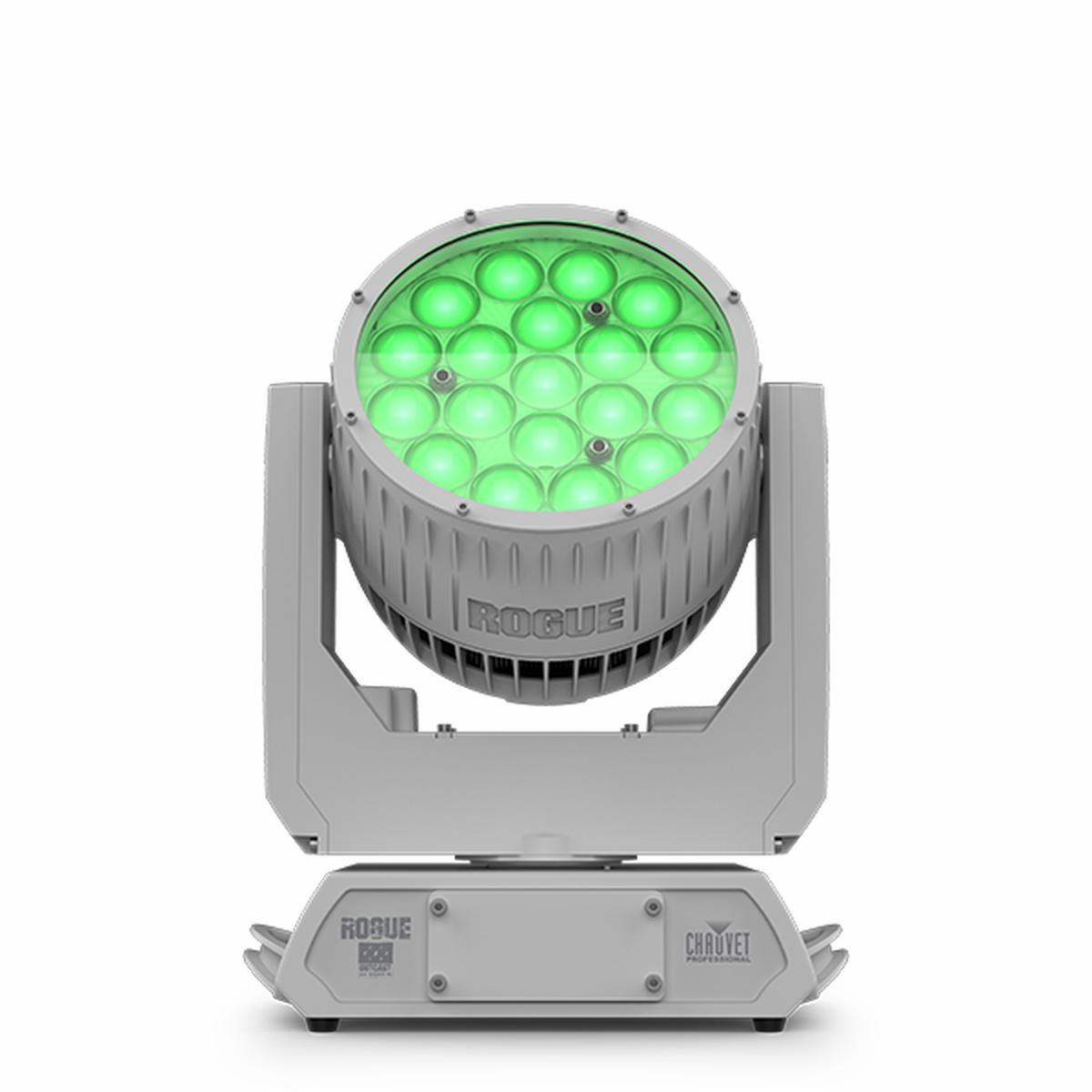

Chauvet Pro ROGUEOUTCAST2XWASHM

Overview

With its full aluminum construction and C5M marine-grade finish, Rogue Outcast 2X Wash M brings layers of external corrosion resistance in a rugged IP66 build engineered with the enhanced protection needed to perform extended duty in and near marine environments. 19 bright 25W RGBW LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming. With a wide zoom range and fast pan/tilt movement, this versatile workhorse brings bold wash effects and durable performance to the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.

At a Glance

• Fully featured IP66 RGBW LED yoke wash fixture with LED zone control, zoom, durable and lightweight aluminum body.

• C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments

• Included display cover for extended outdoor usage in and near marine environments

• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

• 19 RGBW LEDs, 25 W each

• 5 zones of LED control for pixel mapping control

• Color temperature control in select personalities (23CH, 55CH)

• Fast, smooth pan and tilt movement

• RDM enabled for remote addressing and trouble shooting

• Selectable PWM options for camera operation

• Easy to read OLED display with simple, effective menu options

• User selectable calibrated white for 7500 K at full output

• 6 distinct dimming modes for advanced control

• Easy to read OLED display with simple, effective menu options

• Simple and complex DMX channel profiles for programming versatility

• USB-C port for uploading software

Specifications

Optical

• Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectanc
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 7.9 to 35.3
• Field Angle: 11.6 to 50.5
• Cutoff Range: 18.5 to 63.7
• Zoom Range: 7.9 to 63.7
• Lumens Source: n/a
• Lumens Output 5,371
• Illuminance (7.9): 7,632 lux @ 5 m
• Illuminance (63.7): 639 lux @ 5 m
• Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 270 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 6
• Built-in Automated Programs: Yes
• Customizable Programs: yes
• Recall Custom Programs: yes

Construction / Physical

• Dimensions: 11.92×8.58×14.1″ (303x218x361mm)
• Weight: 21.2 lb. (9.6 kg)
• Exterior Color: White
• Housing Material: Aluminum

Connections

• Power Connection: Termination-ready bare-ended
• Data input/output: Termination-ready bare-ended
• Cable Length (power input): 5 ft (1.5 m)
• Cable Length (signal in/out): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 15, 17, 22, 23, 33, 54, 55 or 56
• Modes/Personalities: 8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
• Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
• Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
• Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve

What’s Included

• Rogue Outcast R2X Wash M
• 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
• Display cover
