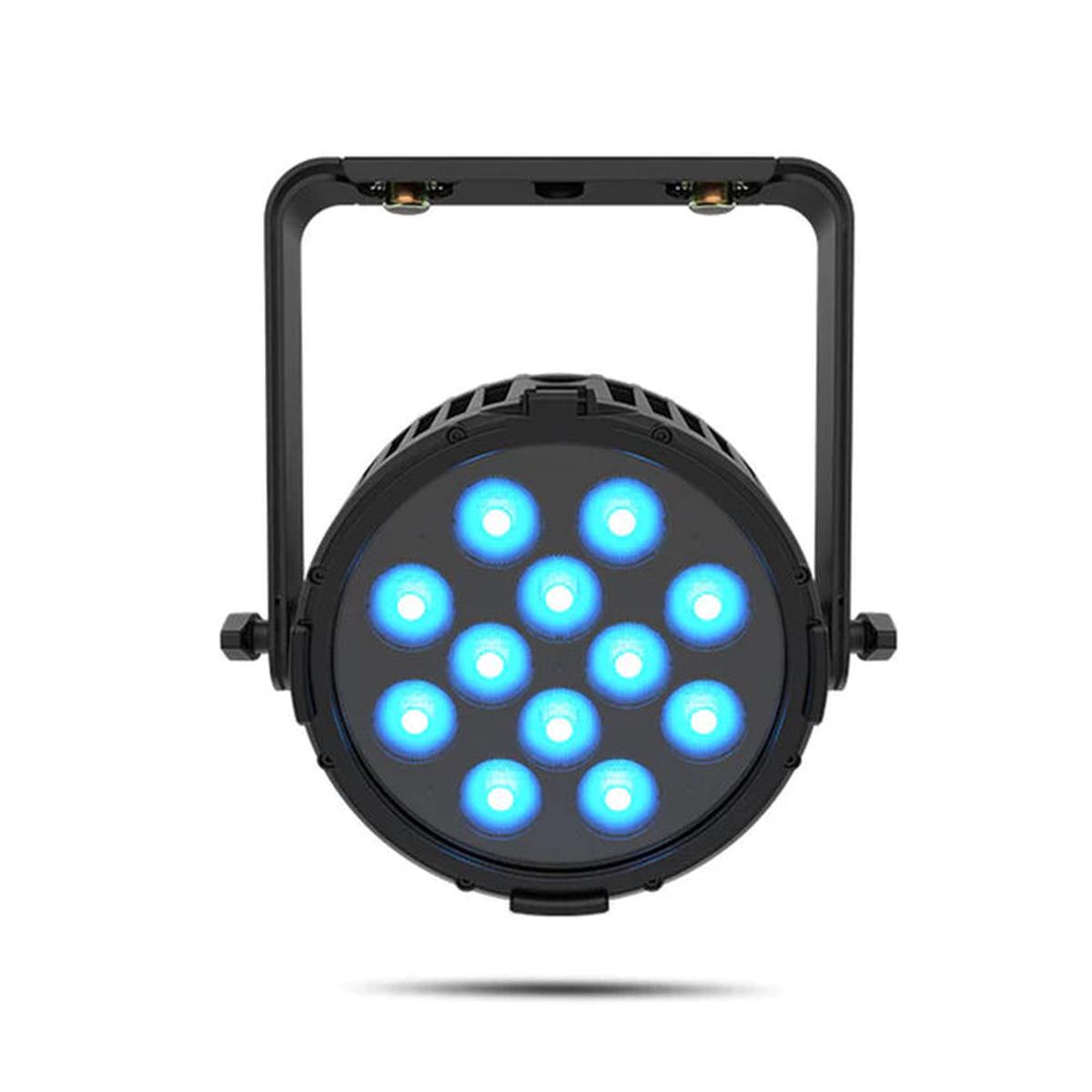

CHAUVET PRO COLORDASHPARH12XIP IP – Chauvet Professional COLORDASHPARH12XIP Color Dash Par H12XIP IP Rated LED Hex Colour Wash

IP Rated LED Hex Colour Wash.

The rugged COLORdash PAR H12X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 12 lbs while delivering over 4,500 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose itsDMXpersonality and an OLED display to easily read its onboard menu, the COLORdash PAR H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

AT A GLANCE

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
• At home in any weather conditions with IP rated power and DMX connections
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency
• Double-bracketed yoke with omega bracket doubles as floor stand

SPECIFICATIONS

OPTICAL

• Light Source: 12 LEDs (hex-color RGBAW+UV) 120 W, (512 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10,000 K
• Color Temperature (at full): 11,008 K
• Beam Angle: 22.2
• Field Angle: 36.9
• Lumens: 4,532
• Illuminance (total): 1,052 lux @ 5 m
• Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 9.1 x 12 x 9.8 in (232 x 305.4 x 247.9 mm)
• Weight: 11.8 lbs (5.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 8.75 in (222 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 3 and 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
• Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
• Power and Current: 126 W, 1.041 A @ 120 V, 60 Hz
• Power and Current: 123 W, 0.604 A @ 208 V, 60 Hz
• Power and Current: 123 W, 0.547 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

WHAT’S INCLUDED

• Colordash Par H12XIP
• Seetronic powercon IP65 power cord
• Gel frame holder (8.75 in/222 mm accessories)
• Omega bracket

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powercon power linking cables
• 5-pin IP or Non-IP DMX Cables
