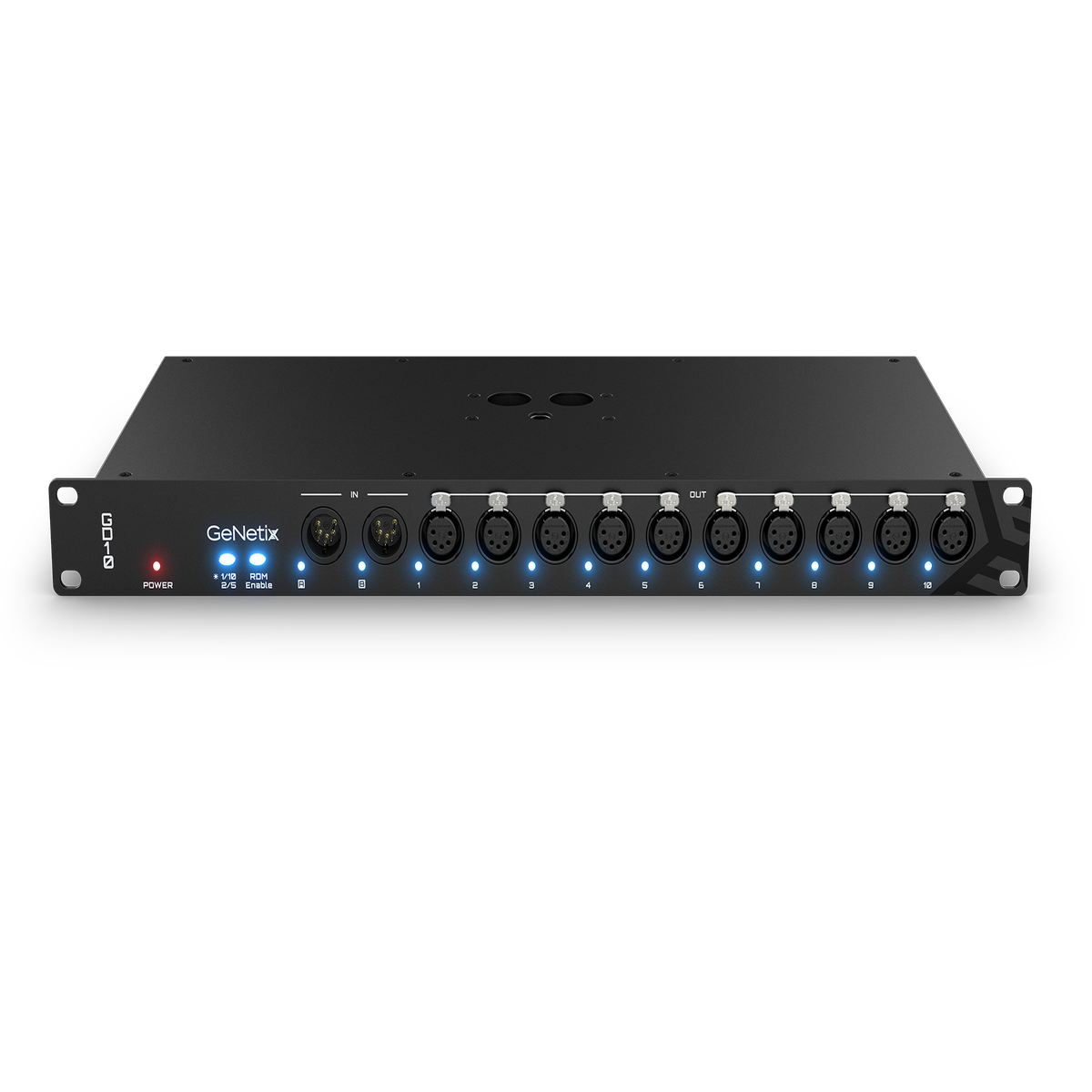

Chamsys GENETIX-GD10 – GeNetix GD10 – 19″ 1U rack-mountable, RDM-capable 10 Port DMX Splitter

GeNetix GD10 is a 19 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 110 or 25 DMX signal distribution. GD10 features an RDM Disable button to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.

Overview:

• 10 Port RDM E1.20 Compliant DMX Splitter
• 2 Input / 10 Output DMX Splitter
• 1 In to 10 Ouput or 2 In to 5 Output Mode
• 19 1U Rack Mountable

GeNetix Nodes

GeNetix Nodes provide a solution for remote data distribution in a wide variety of applications. Supporting industry standard protocols like Art-Net, sACN, RDM along with advanced features including DMX Fallback, Merging and Scene Storage

Specifications

Hardware Specifications:

• 5 Pin opto-isolated DMX Output Ports: 10
• 5 Pin DMX Input Ports: 2
• RDM Enable/Disable Option: Yes
• M12 Clamp Fixing: Yes
• Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): 6.5w

Software Specifications:

• RDM E1.20 Compliant: Yes

Included Accessories:

• Neutrik powerCON TRUE1 Power Cable: 1

Node Weights and Dimensions:

• Width: 480mm (18.9 inches)
• Depth: 218mm (8.59 inches)
• Height: 44.4mm (1.75 inches)
• Weight: 2.75 KG (6.06 lb)
