AMERICAN DJ LINK – 4-Universe DMX hardware controller for use with iPad and ADJ’s Airstream LINK iOS APP.

AVAILABLE NOW FROM ADJ USA

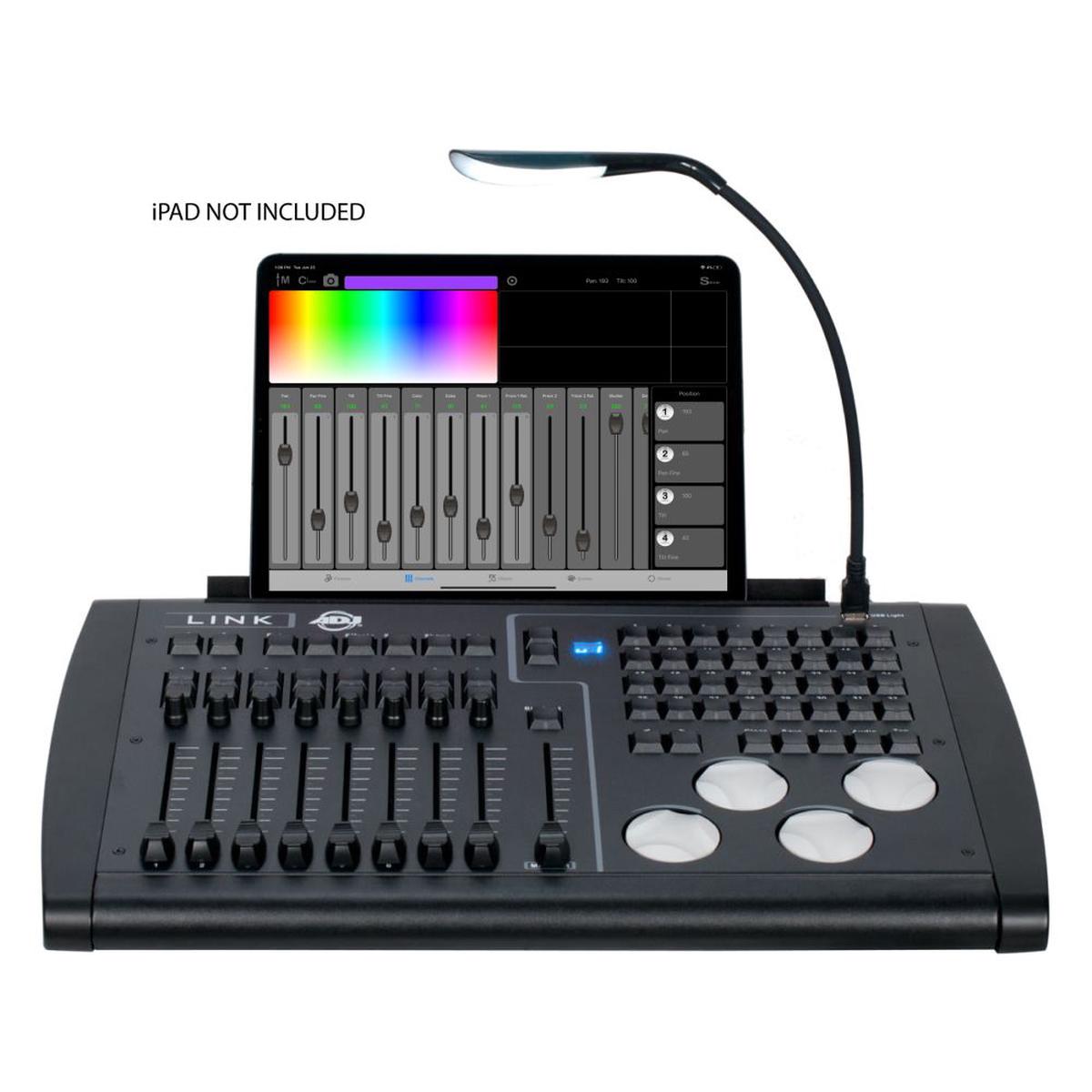

LINK is a 4-universe controller designed to control compatible DMX devices with control from the dedicated Airstream DMX LINK iOS App for iPad.
LINK can connect to an IPad wirelessly or hardwired. When connected wirelessly, LINK creates a private standalone 2.4 or 5 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network between an iPad and LINK console, which can coexist in busy RF environments alongside other wireless technologies. Connecting wirelessly will also allow you to undock the iPad and remotely control, program and playback your light show. If you prefer to use a hardwired connection between the IPad and LINK you will need a USB cable adapter, not included, which will also allow the IPad to charge at the same time. Four (4) hardwired, 5-pin XLR outputs on the rear of LINK send constant and reliable DMX signal to compatible DMX devices.
LINK is ideal for small production events, nightclubs, bars or any event or venue which requires the flexibility of wireless iPad control, and who are looking for a robust, 4 DMX universe APP based lighting control solution.
The LINK controller is compatible with the dedicated Airstream DMX LINK iOS APP for iPad,
Compatible with iPad only. Requires iOS 12.0 or later. *iPad NOT included.
CONTROL / CONNECTIONS:(6) General Purpose Buttons(1) Master and (8) Control 100mm Faders(16) Page Playback Buttons Above Faders(8) Rotary Dials with Push-In Selection Above Faders(1) Blackout Button(32) Instant Effect or Scene Calling Buttons(8) Bump / Momentary Effect Buttons(4) Rotary Encoder Wheels with Push-In SelectionUSB 2.0 Type B Port(4) 5-pin DMX output ports
ADDITIONAL FEATURES:WiFi and DMX5122.4 and 5Ghz GHz DSSS Wifi Network4, Hardwired, DMX UniversesUSB Input for Gooseneck Work LightRemovable Outer Case for 6U Rack MountingKensington Security Device Slot
SIZE / WEIGHT:Length: 20.3 (514mm)Width: 13.2 (336mm)Vertical Height: 3.5 (88mm)Weight: 13.0 LBS. (5.9 kg)
INCLUDED ITEMS:USB CableMult-voltage DC9V Power Supply (100-240V, 50/60Hz)4 Power Adapters: Type A (US), Type C (Europe), Type G (UK), Type I (Australia, China)Rack Mount Kit
APPROVALS:cETLus (Control #5014475)
Specifications and documentation subject to change without notice.
