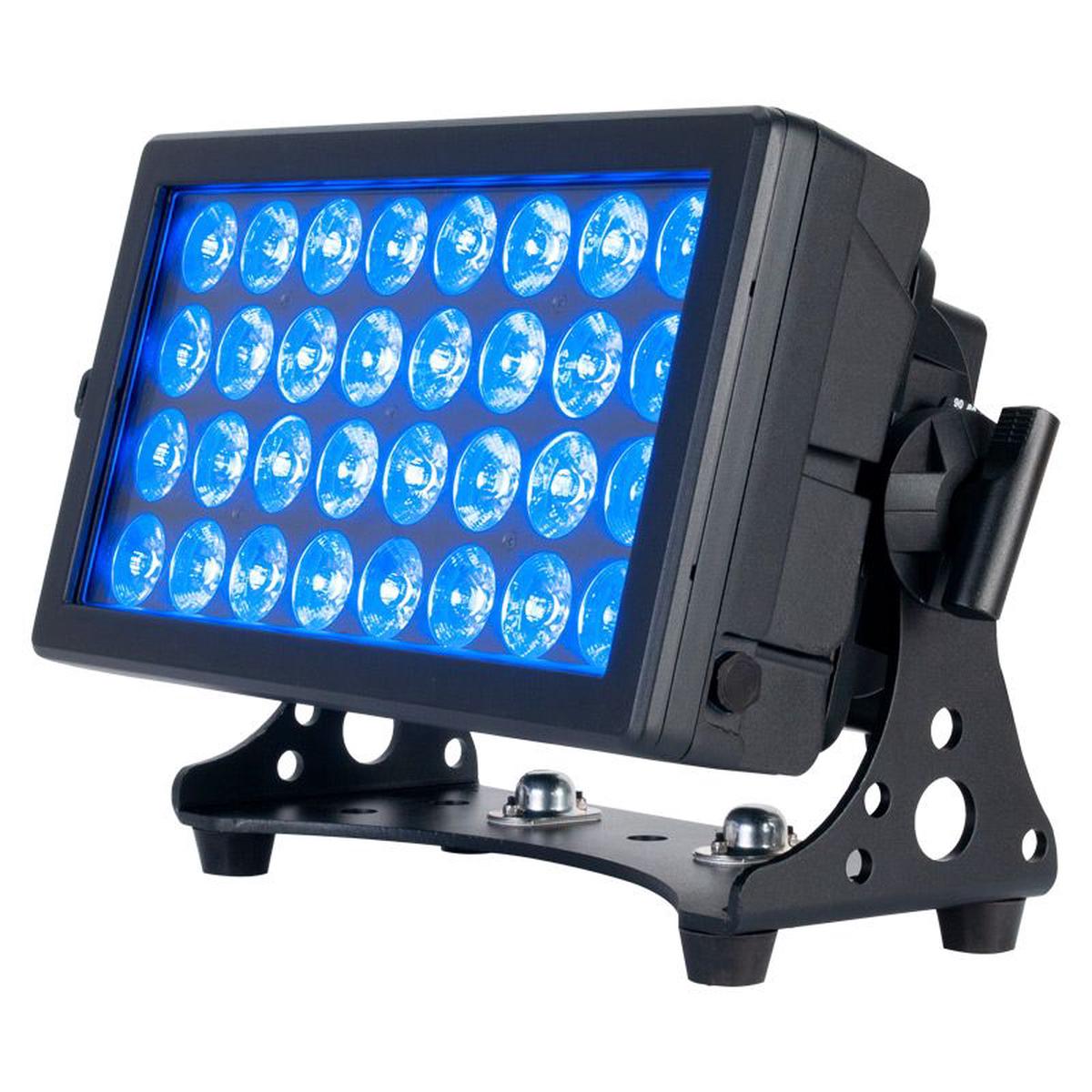

AMERICAN DJ ENCORE-LP32IP – PAR fixture with 32 20W RGBL LED, DMX, IP65

Light Source:

LED: 32 x 20W RGBL LED’s (50,000 hr.) Beam Angle: 11, 25 with Frost Filter Field Angle: 23.7, 47 with Frost Filter LUX: 157,491 @ 1M, 6,300 @ 5M (Full On); 28,363 @ 1M, 1,135 @ 5M (Full On) with Frost Filter CRI: 84.9 CRI R9: 59.3
Features: IP65 rated protects from dust, sand, moister, water All metal construction with black housing Includes heavy duty floor / mounting bracket with omega clamp receivers Locking bracket system (securely locks every 10) Includes magnetic removable filter frame to add a diffusion filter Flicker free for film and broadcast Linear variable white temperature control (2700K – 7000K) Built-in antenna for WiFLY EXR Wireless DMX and Aria X2 Wireless DMX Control
Construction: Display: OLED display with function buttons Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections) Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections) All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Control: WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control. Multiple DMX channel modes
8 individually controlled sections with Pixel Zone Control 0-100% Dimming + smooth 16-bit Dimming 6 Dim Modes 4 Dim Curves User settable Dim Speed control Control Mode: DMX512, RDM (Remote Device Management) LED Refresh Rate: 900Hz – 25Khz
With Wired Digital Communication Network Selectable Fan Modes: Silent, Auto or High
Electrical: Power voltage: AC100-240V, 47/63Hz (Multi-voltage) Daisy chain up to 2 fixtures max (@ 120V); 6 fixtures max (@ 240V) Power consumption: 334W Max Min/Max Ambient Temperature: -20C ~ 45C
Dimensions & Weight: Dimensions: 13.9x 9.7 x 6.5 / 353.4 x 246.0 x 165.5mm Weight: 24.25 lbs. / 11 kg.
Approvals / Rating / Environment:CE CertifiedETL (Pending)Max Ambient Operational Temperature: 113F (45C)Min Ambient Operational Temperature: -4F (-20C)
Included Accessories: 25 frost filter with metal frame Outdoor Locking Power Cord
Optional Accessories:ELP32L20: 20 frost filter + metal frame for Encore LP32IPELP32L60: 60 frost filter + metal frame for Encore LP32IPELP32L100: 100 frost filter + metal frame for Encore LP32IPBarn Door: BAR032
*Specifications are subject to change without notice.
