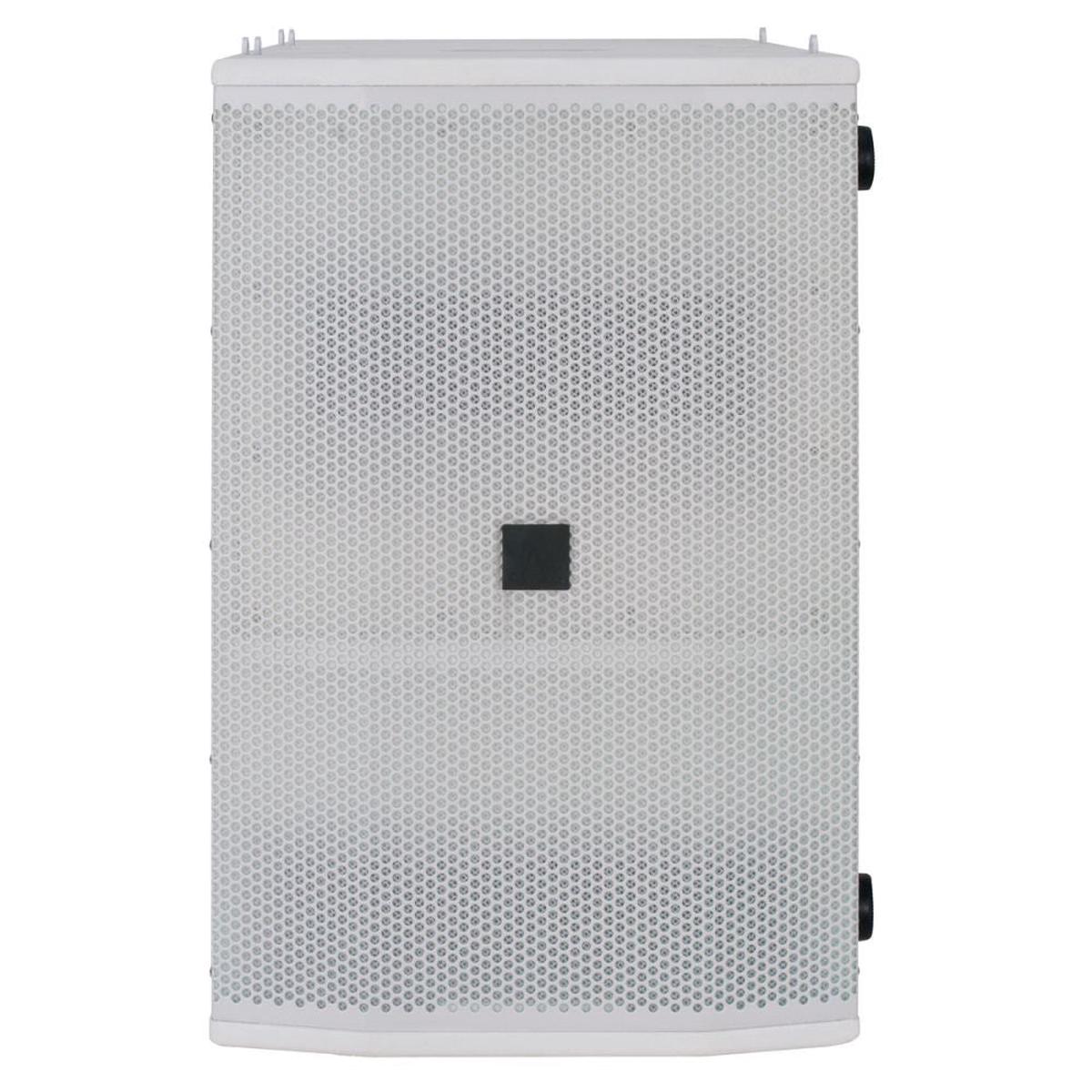

American DJ Avante Imperio SUB210W

Overivew

Avante Audios White Imperio mini line array system is a great fit for small to mid-size venues. If more bass is required, the Imperio SUB210W, in an all white finish, is the perfect fit.

Avante Audio’s Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75″ woofers and 6 inverted dome tweeters (IDVAT – Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10″ woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10″ woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier

Specifications

AMPLIFIER

• Power (RMS): 700W, 1400W Peak
• 100-120V / 220-240V ~ 50/60Hz (country specific)
• LED Power / Signal / Clip Indicator
• Input: 1x 3pin XLR and Locking Power Connector
• Output: 1x 3pin XLR and Locking Power Connector
• Phase Switchable (0 / 180)
• Internal Selectable X-Over 90Hz or 120Hz)
• Volume Control Dial

DRIVER

• Driver: Two 10″ woofers with 2.5 Voice Coils
• selectable crossover point: optional 90Hz/120Hz
• Max SPL: 124dB
• Flyable with optional flybar
• Inputs: 1 XLR
• Outputs: 1 XLR
• 6th Order Bandpass Design
• (2) M20 Screw Pole Mount (Can be used vertically or horizontally)
• Grill: 1.2mm steel
• Cabinet: plywood White

APPROVALS

• ETL Approved
