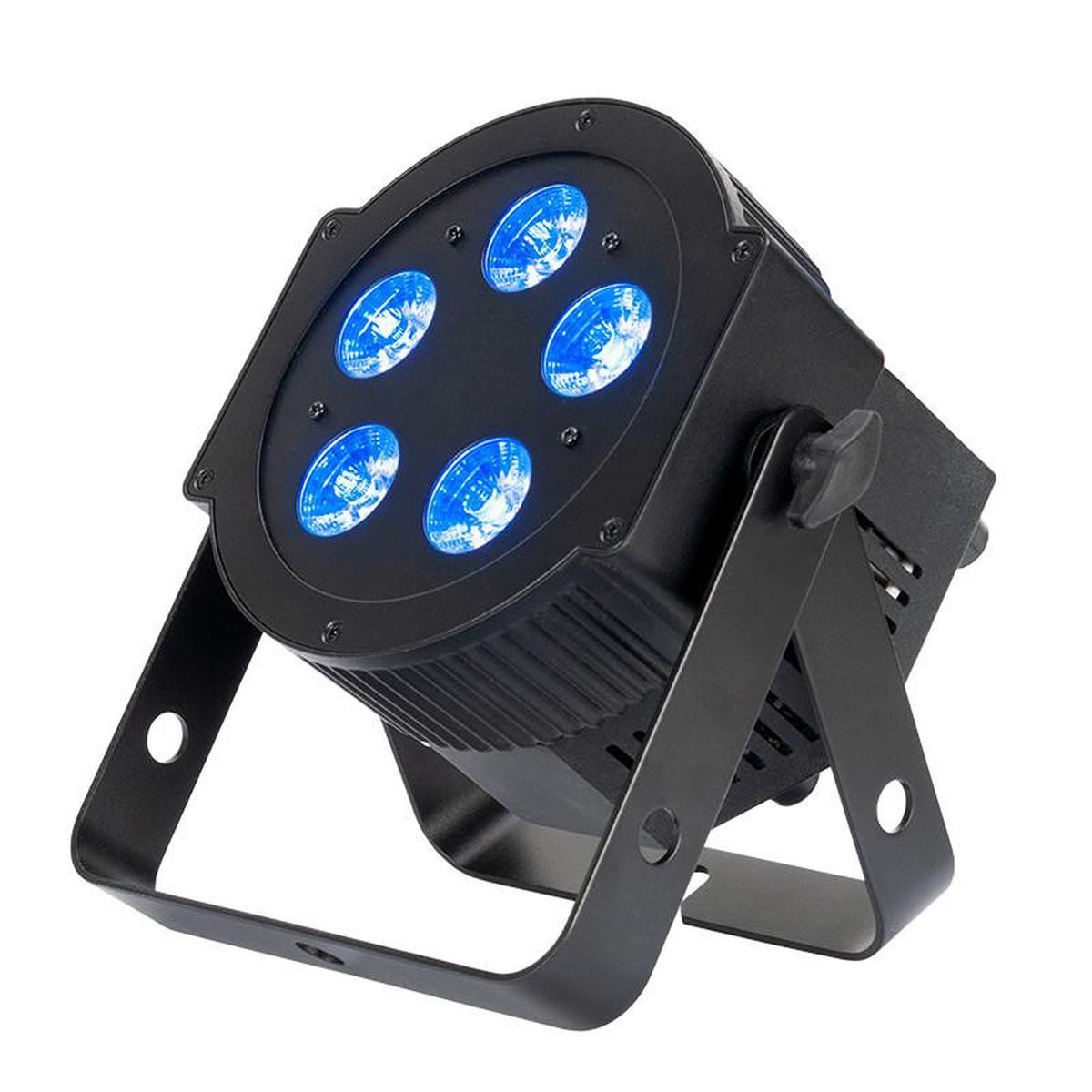

AMERICAN DJ 5PX HEX – 5x 6 Watts Led wash fixture

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 10-Watt , 6-IN-1 HEX LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages.

5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in IEC In/Out power connectors.

The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

Specifications:
– Ultra bright, flat wash fixture with 5 x Red, Green, Blue, Amber, White & UV LED pixels
– Smooth RGBAW + UV color mixing
– Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

– 4 DMX Modes: 6, 7, 8, & 12 channel
– 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
– 7 Built-In Programs
– 63 built-in Color Macros
– Flicker Free operation (No flickering on camera)
– 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
– LED pulse and strobe effect
– Electronic Dimming: 0 – 100%
– Beam angle: 30-degree
– 4-button, DMX digital display on rear panel
– Compatible with Dotz Par RF wireless remote control (sold separately)
– Dual yoke allows fixture to be hung or set on the ground
– Data linkable via 3/5-pin XLR cables
– Power linkable via Power Con (8x 5PX Hexs Max @ 100V, 21x 5PX Hexs Max @ 240V.)
– Light Source: 5 x 10-Watt RGBAW + UV LEDs, (Rated at approximately 50,000 hrs.)
Specifications subject to change without notice.

FEATURES:
Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
Scissor yoke + rubber feet allows fixture to be hung or set on the ground
Flicker Free operation (No flickering on camera)
Smooth RGBAW + UV color mixing
All metal black exterior housing

OPTICAL:
Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
LED life rated at approximately 50,000 hrs.
Beam angle: 25-degree

CONTROL:
4-button, DMX digital display on rear panel
Compatible with Dotz Par RF wireless remote control (sold separately)
7 Built-In Programs
63 built-in Color Macros
4 DMX Modes: 6, 7, 8, & 12 channel
5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
LED pulse and strobe effect
Electronic Dimming: 0 – 100%

CONNECTIONS:
Data linkable via 3-pin or 5-pin DMX connections
Daisy chain power from locking power In/Out connections
With Wired Digital Communication Network

ELECTRICAL:
Multi-voltage operation: AC 100-240V, 50/60Hz

DIMENSIONS / WEIGHT:
Dimensions (LxWxH): 4.5 x 8.25 x 8.75/ 114 x 208 x 222mm
Weight: 5.8 lbs. / 2.6 kgs

WHATS IN THE BOX:
Locking Power to Edison Cable
Scissor yoke

APPROVALS:
cETLus Approved (Control #4010765)
CE Approved
